Why Proper Pipe Alignment Is Essential for Quality Poly Pipe Welding
When it comes to polyethylene (PE) pipe welding, it’s often the simple things that make the biggest difference.
One of those is pipe alignment.
Whether you’re carrying out butt welding or electrofusion welding, taking the time to correctly align the pipe before the weld is one of the easiest ways to improve the quality of the finished joint.
It might only take a few extra minutes, but those few minutes can save hours of rework later.
Why Does Alignment Matter?
The goal of any PE pipe weld is to create a strong, permanent, leak-free connection.
For that to happen, the pipe needs to be correctly positioned before the welding process begins.
If the pipes are out of alignment, unevenly supported or under stress, the quality of the weld can be affected. Even if the welding cycle is completed correctly, poor preparation beforehand can reduce confidence in the finished joint.
Simply put, good alignment gives the welding process the best chance of producing a quality result.
It’s About More Than Making the Pipe Look Straight
Many people think alignment is simply about appearance.
It isn’t.
Correct alignment helps ensure the pipes come together as intended, reducing unnecessary stress on the joint and making it easier to carry out the welding process correctly.
Whether you’re joining a new pipeline, carrying out a repair or installing a water service, taking the time to set the pipe up properly is part of producing a professional result.

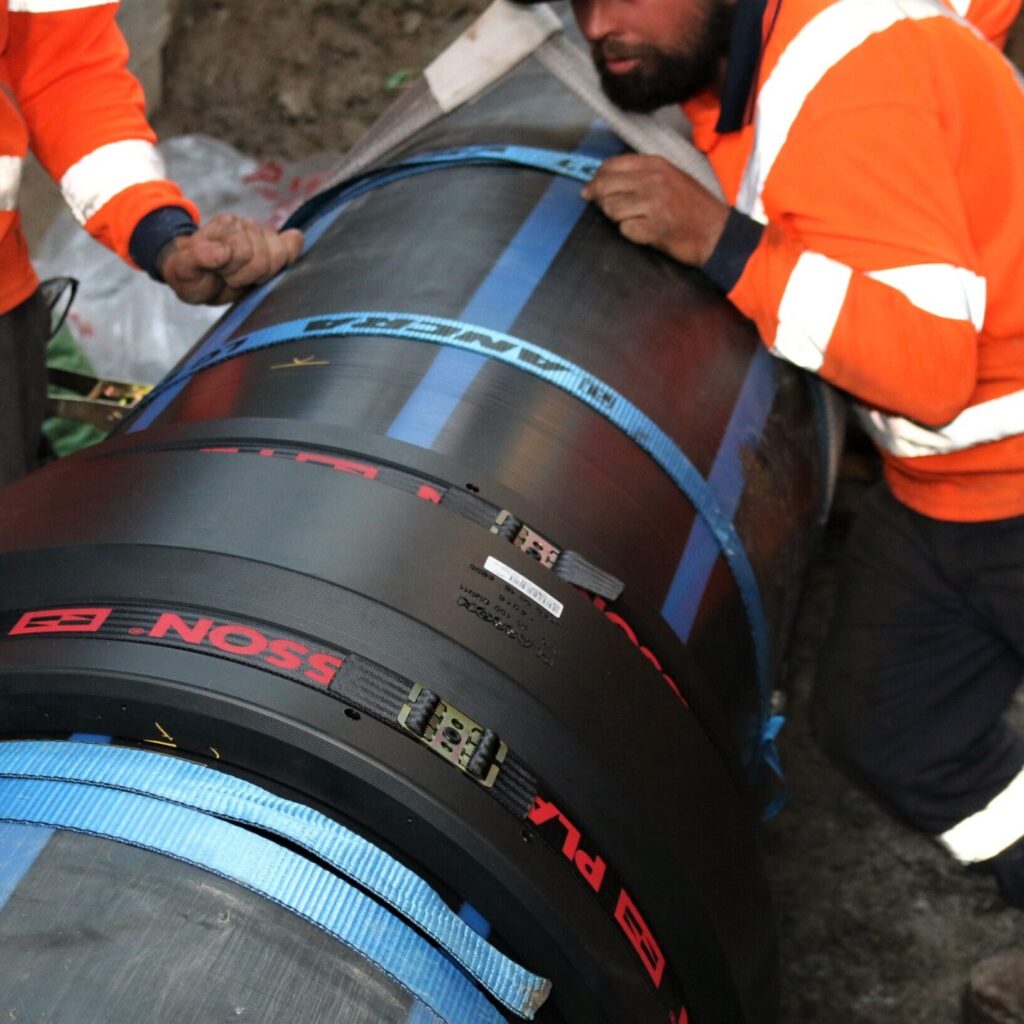

Alignment Is Just as Important for Electrofusion Welding
Because electrofusion fittings are used to connect the pipe, some people assume alignment isn’t as critical.
In reality, it’s just as important.
If the pipe moves during the welding or cooling process, or if the fitting is subjected to unnecessary stress, the quality of the finished joint may be compromised.
That’s why restraint clamps and proper support are commonly used throughout the welding process to help keep everything stable while the joint is being completed.

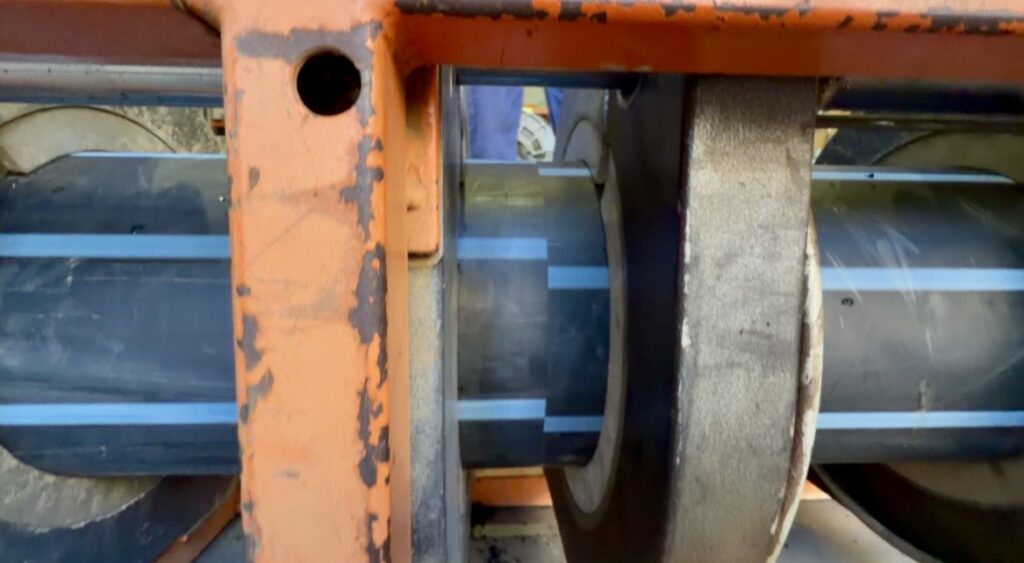

Butt Welding Depends on Good Alignment
With butt welding, correct alignment is even more obvious.
The pipe ends need to come together evenly so the welding process can be carried out correctly.
Before welding begins, installers check that the pipe is securely clamped, properly supported and aligned in accordance with the approved welding procedure.
Taking shortcuts at this stage can make the entire welding process more difficult.
Small Details Produce Better Results
Experienced PE welders know that quality isn’t created by one big step.
It’s built through dozens of small decisions.
Cleaning the pipe.
Preparing the surface.
Checking the equipment.
Supporting the pipe.
Confirming the alignment.
Inspecting the finished weld.
Each step contributes to the overall quality of the joint.
Miss one, and you’re relying on luck instead of good practice.
Good Preparation Saves Time
It can be tempting to rush through preparation, especially when there’s pressure to keep a project moving.
But correcting a problem after the weld has been completed is almost always more time-consuming than taking a few extra minutes to prepare the job properly.
The best installers understand that slowing down during preparation often means finishing the project faster overall.
Learn the Correct PE Welding Process
Quality PE pipe welding starts long before the welding machine is switched on.
Understanding pipe preparation, alignment, equipment setup, inspection and approved welding procedures all contribute to producing reliable welds.
Lernna delivers nationally recognised training in:
PMBWELD301E – Join Polyethylene Plastic Pipelines using Butt Welding
PMBWELD302E – Join Polyethylene Pipes Using Electrofusion Welding
Our blended learning model combines online theory with practical, hands-on training, helping plumbers, civil contractors and utility workers develop the knowledge and confidence needed to carry out PE pipe welding to industry standards.
Because in polyethylene welding, the strongest joints don’t happen by chance.
They start with good preparation.
